Solar LightingCatalogue 2026
Off-grid solar street lighting, split-type systems, high-mast, pathway and garden luminaires, smart pole cameras and IoT control — supplied, installed and supported by Brightech.
Matched to the road, not to the catalogue
Lighting a street well is a specification exercise. Road width, mounting height, spacing, canopy shading and the hours the street is actually used all change which luminaire is correct. This range covers every class from a 10W footpath bollard to a 200W high-mast array, so the specification can follow the road.
All-in-one solar street lights
Panel, battery, controller and LED in one sealed die-cast body. The fastest install and the lowest lifetime service cost. 10W–150W.
Split-type solar street lights
Panel mounted separately from the luminaire — the right answer under tree canopy or where the panel must be aimed independently. 40W–200W.
Area, court and garden lighting
Wide-beam flood and decorative optics for parks, sports courts, parking areas and estate walkways. 15W–150W.
Smart pole hardware
Turns an installed lighting pole into a safety and sensing site without trenching for power or fibre.

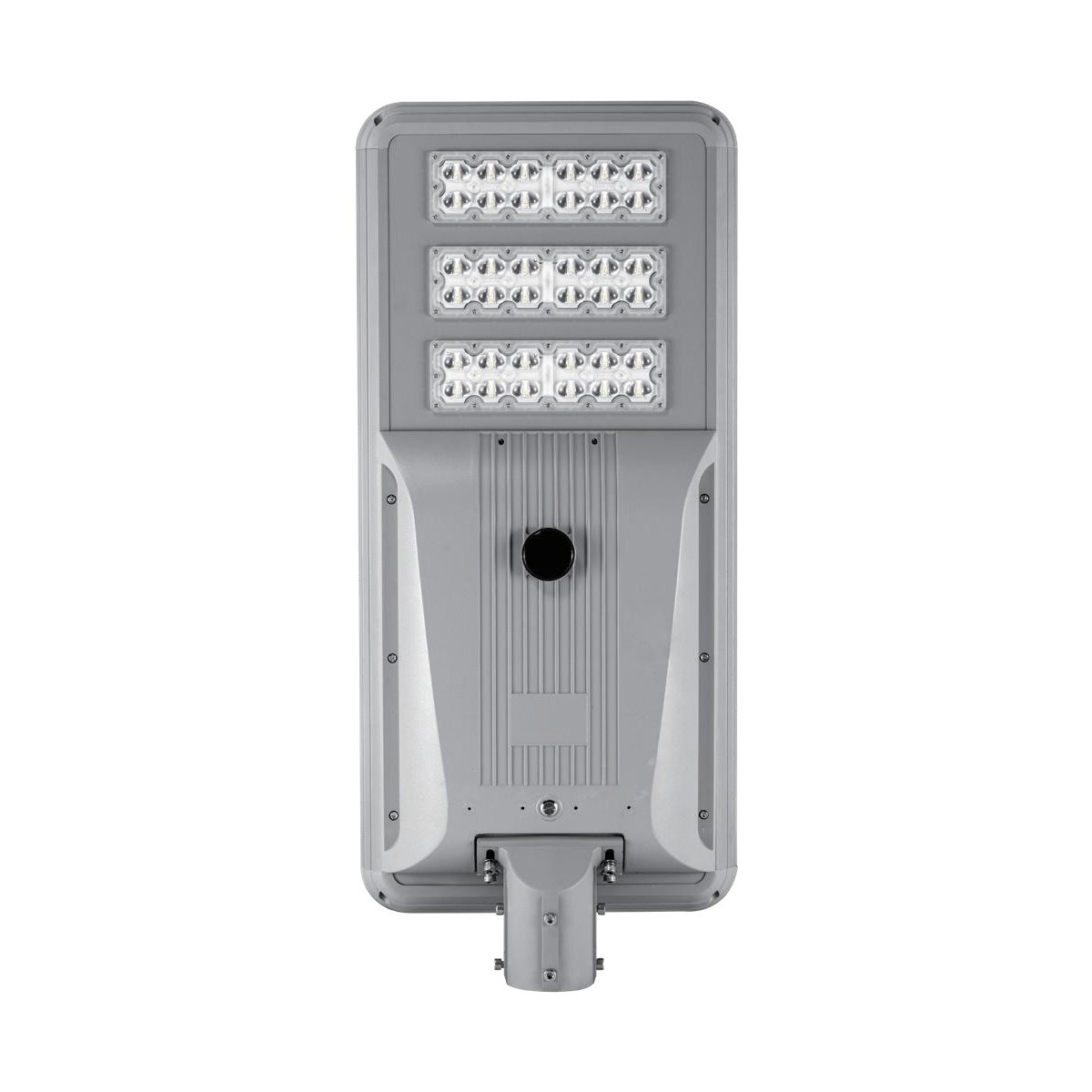

Brightech Nova 80 AIO
The Brightech lead product for volume street-lighting rollouts. One SKU, one install method and one spares kit across an entire suburb — with a removable battery compartment so servicing is a swap, not a pole replacement.
Product features
- Die-cast ADC12 one-piece heat sink with profile aluminium, treated with thickened anti-corrosion paint.
- Brand-new grade-A LiFePO4 cells: 2,500+ cycles, 6–8 year service life, 3–5 rainy days of autonomy.
- 4-core high-efficiency SMD 3030 LEDs at 210 lm/W with Lumileds chips and a high-transmittance optical lens.
- Monocrystalline panel with MPPT controller — full recharge in 4–6 hours of good sun.
- Microwave sensor: 100% output on motion, 30% hold when the street is empty.
- Sealed 4G IoT compartment for optional cloud control and telemetry.
Product parameters
| Model | Nova 80 AIO |
|---|---|
| Power | 80W |
| Solar panel | 18V / 105W monocrystalline |
| Battery | LiFePO4 12.8V 45Ah (576Wh) |
| LED | 4-core high-efficiency SMD 3030, 240 pcs |
| Luminous flux | 16,800 lm |
| Efficacy | 210 lm/W |
| Panel conversion efficiency | 23.8% |
| Product size | 1,610 × 460 × 130 mm |
| Net weight | 16 kg |
| Controller | MPPT |
| Light angle | 155° × 75°, transmittance >95% |
| Working mode | 100% on motion, 30% without motion |
| Lighting method | Intelligent control + microwave induction + segmented time control |
| Cloud management | IoT control management system (optional) |
| Autonomy | 3–5 rainy days |
| Material / rating | ADC12 die-cast aluminium · IP65 |
Road lighting · Urban streets · Industrial parks · Highways · Sidewalks · Car parks
10–12 m

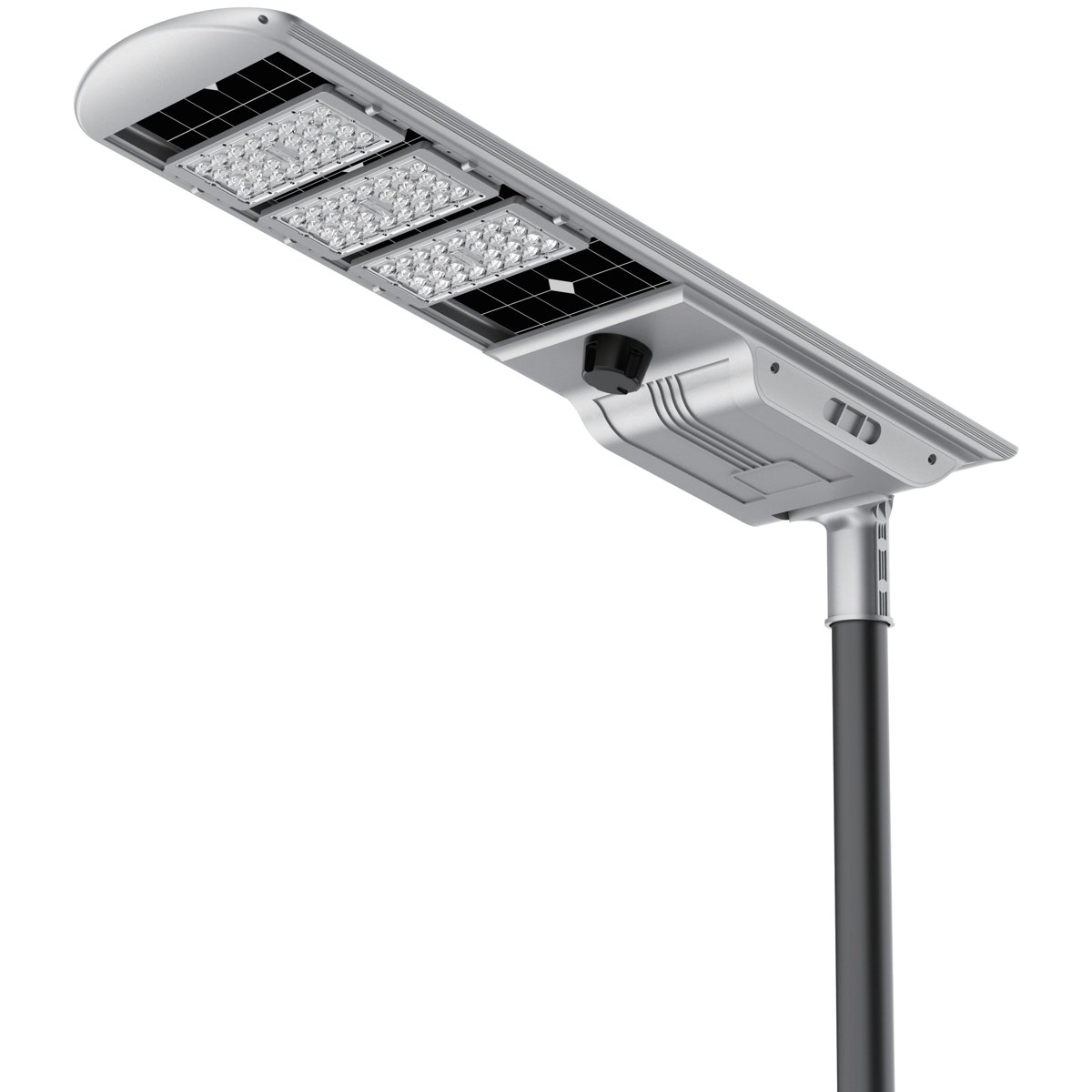

Brightech Lumen LX Series
The highest-output all-in-one in the range, with an adjustable and removable head. Specified for arterials, dual carriageways and airport approaches where uniformity across a wide carriageway matters more than unit cost.
Product features
- Adjustable and removable luminaire head — aimed on site, serviced without dismantling the mount.
- AL6063 + ADC12 die-cast radiator with thickened anti-corrosion paint.
- 220 lm/W with Lumileds LED chips and a 90%+ transmittance PC lens.
- No additional wiring required; multiple mounting brackets for flexible pole placement.
- Microwave sensing plus segmented time control; 82 mm lamp-post adapter.
Product parameters
| Model | LX-60 | LX-80 | LX-100 | LX-120 | LX-140 |
|---|---|---|---|---|---|
| Power | 60W | 80W | 100W | 120W | 140W |
| Solar panel | 18V/93.5W | 18V/117W | 18V/139W | 36V/158W | 36V/175W |
| Battery (LiFePO4) | 12.8V 45Ah 576Wh | 12.8V 60Ah 768Wh | 12.8V 75Ah 960Wh | 25.6V 45Ah 1152Wh | 25.6V 60Ah 1536Wh |
| LED | SMD5050 56 pcs | SMD5050 84 pcs | SMD5050 112 pcs | SMD5050 140 pcs | SMD5050 140 pcs |
| Luminous flux | 13,200 lm | 17,600 lm | 22,000 lm | 26,400 lm | 30,800 lm |
| Product size (mm) | 1195×457×129 | 1420×457×129 | 1556×457×129 | 1772×457×129 | 1932×457×129 |
| Net weight | 16.86 kg | 19.52 kg | 22.95 kg | 25.8 kg | 30.8 kg |
| Efficacy | 220 lm/W | ||||
| Material | AL6063 + ADC12 aluminium | ||||
| Controller | MPPT boost controller | ||||
| Lamp post adapter | 82 mm | ||||
| Lighting method | Microwave sensing + segmented time control | ||||
| Autonomy | 3–5 rainy days | ||||
| Protection grade | IP65 | ||||
Arterials · Dual carriageways · Airport approach roads · Highways · Industrial estates
6–13 m depending on wattage

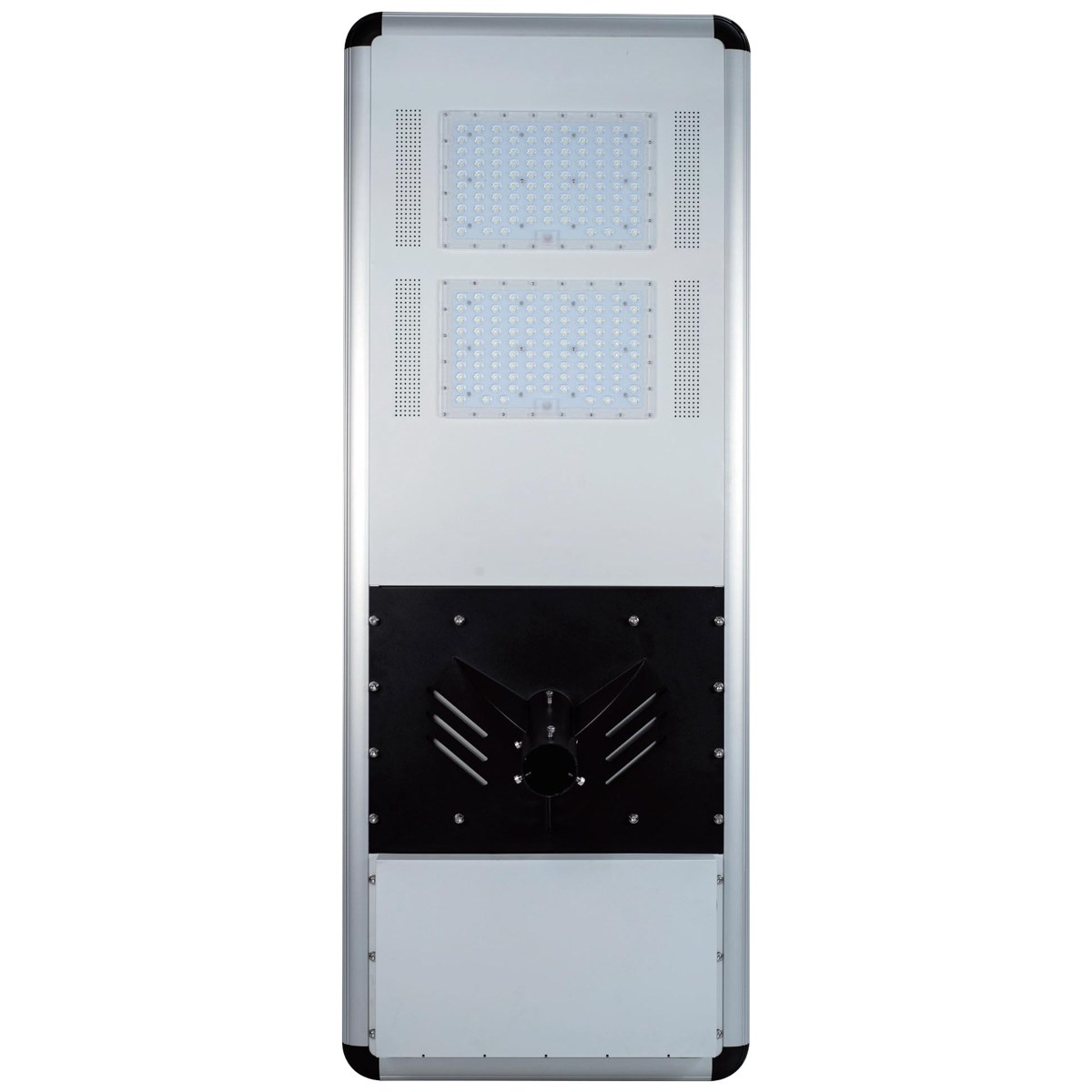

Brightech Lumen A Series
A heavy-duty all-in-one for wide roads, ports, yards and mine access routes, running up to 150W with a 300W panel and a separate removable battery compartment.
Product features
- Die-casting + profile aluminium + 1060 pure aluminium body for maximum heat transfer.
- High-performance LiFePO4 pack in a removable compartment; 3–5 days without sunlight.
- 220 lm/W efficacy with a 75° × 155° optic at >95% transmittance.
- Intelligent control plus segmented time control; MPPT controller optional.
- 50,000+ hour rated LED lifespan.
Product parameters
| Model | A-80 | A-100 | A-120 | A-150 |
|---|---|---|---|---|
| Power | 80W | 100W | 120W | 150W |
| Solar panel | 18V/150W Mono | 36V/180W Mono | 36V/240W Mono | 36V/300W Mono |
| Panel size (mm) | 1130×679×4 | 1370×679×4 | 1790×679×4 | 1940×770×4 |
| Battery (LiFePO4) | 12.8V 60Ah 768Wh | 25.6V 45Ah 1152Wh | 25.6V 60Ah 1536Wh | 25.6V 75Ah 1920Wh |
| Luminous flux | 17,600 lm | 22,000 lm | 26,400 lm | 33,000 lm |
| Product size (mm) | 1175×725×100 | 1415×725×120 | 1825×725×120 | 1985×815×120 |
| Efficacy | 220 lm/W | |||
| Panel conversion efficiency | 23.8% | |||
| Material | Die-casting + profile aluminium + 1060 pure aluminium | |||
| Controller | MPPT optional | |||
| Light angle | 75° × 155°, transmittance >95% | |||
| Lighting mode | Intelligent control + segmented time control | |||
| Autonomy | 3–5 rainy days | |||
Wide roads · Ports and yards · Mine access roads · Logistics hubs · Border posts
6–18 m depending on wattage

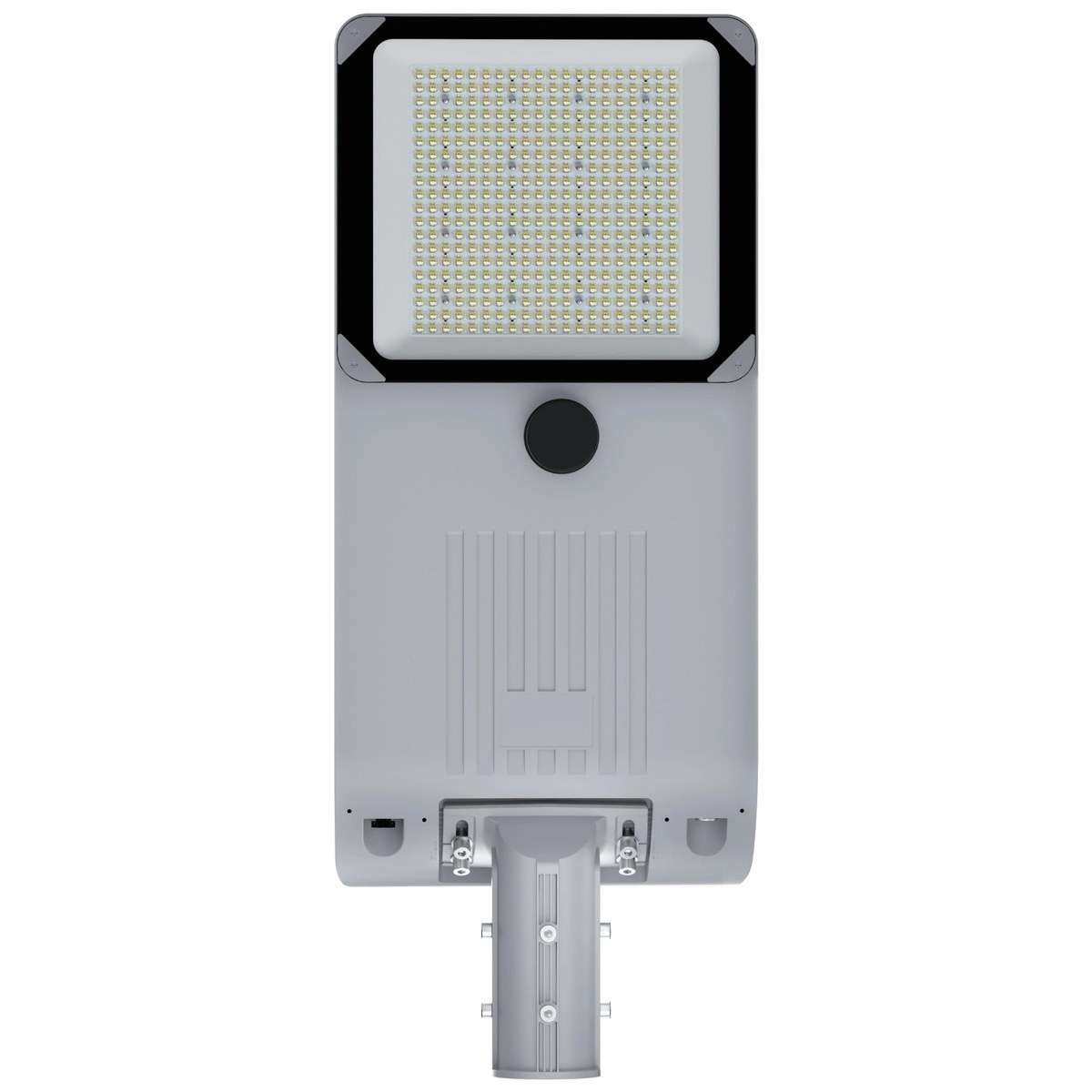

Brightech Lumen FT Series
A compact integrated all-in-one for residential streets, estate roads and internal precinct routes where a full arterial luminaire would be over-specified.
Product features
- Single sealed body — panel, battery, controller and optic in one unit.
- Grade-A LiFePO4 storage with 2,500+ cycle life.
- High-transmittance optical lens for soft, glare-controlled illumination.
- Microwave induction with segmented time control for overnight energy management.
- Quick bracket mounting on new or existing poles.
Product parameters
| Model | FT-40 | FT-60 | FT-80 | FT-100 | FT-120 |
|---|---|---|---|---|---|
| Power | 40W | 60W | 80W | 100W | 120W |
| Autonomy | 3–5 rainy days | ||||
| Controller | MPPT controller | ||||
| Material | Die-cast aluminium + PMMA optic | ||||
| Lighting method | Intelligent control + microwave induction + segmented time control | ||||
| Protection grade | IP65 | ||||
| Panel conversion efficiency | 23.8% | ||||
| Battery chemistry | Grade-A LiFePO4, 2,500+ cycles | ||||
Residential streets · Estate roads · Precinct internal routes · School surrounds · Clinics
5–10 m depending on wattage

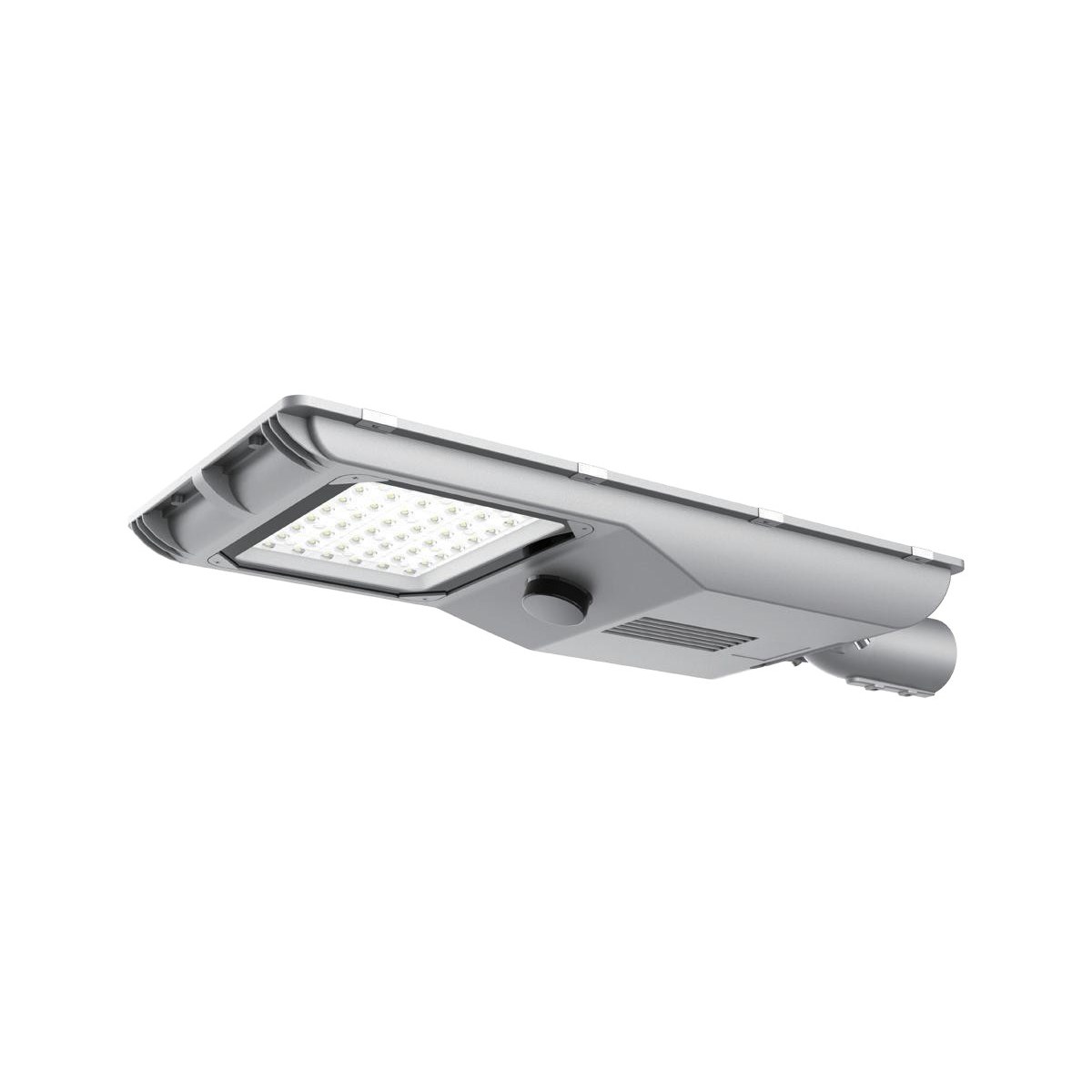

Brightech Lumen Compact Series
A low-wattage pathway and footpath luminaire for walkways, parks, courtyards and estate paths — the smallest unit in the range and the fastest to install.
Product features
- Easy to install and maintain, with a replaceable battery compartment.
- LiFePO4 battery supporting 2–3 rainy days; 2,500+ cycles, 6–8 year life.
- 180 lm/W using Lumileds LED chips.
- Monocrystalline panel with PWM controller, 4–6 hour charge.
- Fixed dimming profile: 100% for 4 hours, 50% for 2 hours, 30% for the final 6 hours.
Product parameters
| Model | C-10 | C-15 | C-20 |
|---|---|---|---|
| Power | 10W | 15W | 20W |
| Solar panel | 6V/35W Mono | ||
| Battery (LiFePO4) | 3.2V 30Ah | 3.2V 52Ah | 3.2V 72Ah |
| LED | SMD3030 144 pcs | SMD3030 144 pcs | SMD3030 192 pcs |
| Luminous flux | 1,800 lm | 2,700 lm | 3,600 lm |
| Product size (mm) | 755×305×100 | ||
| Efficacy | 180 lm/W | ||
| Material | Die-cast aluminium + PMMA | ||
| Controller | PWM controller | ||
| Light angle | 70° × 140°, transmittance >95% | ||
| Lighting method | 100% for 4 h, 50% for 2 h, 30% for the last 6 h | ||
| Autonomy | 2–3 rainy days | ||
Footpaths · Parks · Courtyards · Estate walkways · Perimeter paths
4–7 m depending on wattage

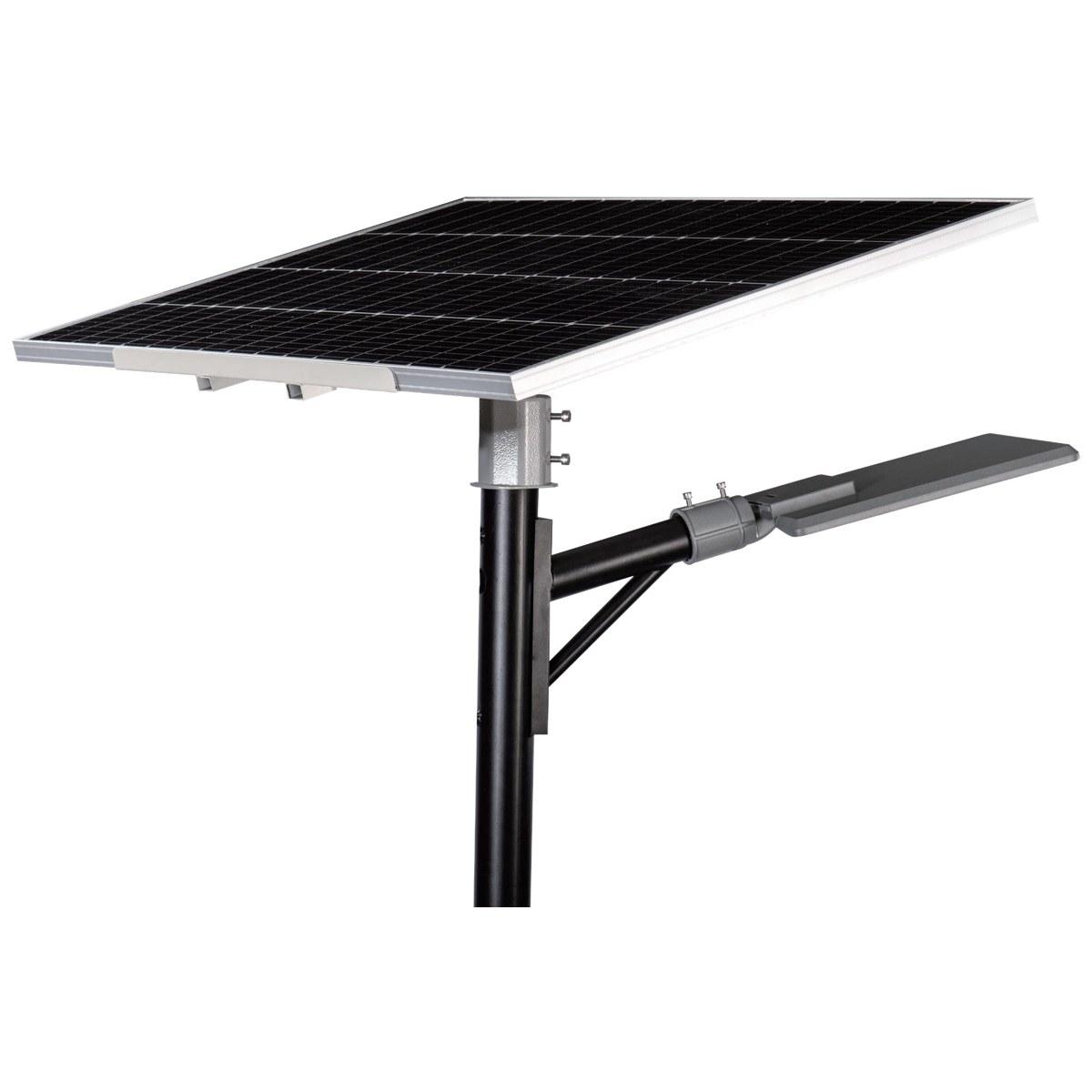

Brightech Split SB Series
A split-type system with the panel mounted separately from the luminaire. The correct specification under tree canopy, on shaded boulevards, or anywhere the panel must be aimed independently of the road.
Product features
- Monocrystalline panel on an adjustable sleeve — aimed at true solar north on site.
- Integrated MPPT controller; full recharge in 4–6 hours.
- Replaceable battery compartment for straightforward field servicing.
- LiFePO4 storage, 3–5 rainy days of backup, 2,500+ cycles, 6–8 year durability.
- 190 lm/W Lumileds LED with a high-transmittance optical lens and reduced glare.
Product parameters
| Model | SB-40 | SB-60 | SB-80 | SB-100 | SB-120 |
|---|---|---|---|---|---|
| Power | 40W | 60W | 80W | 100W | 120W |
| Solar panel | 18V/80W | 18V/120W | 18V/160W | 18V/200W | 36V/240W |
| Battery (LiFePO4) | 12.8V 30Ah 384Wh | 12.8V 45Ah 576Wh | 12.8V 60Ah 768Wh | 12.8V 75Ah 960Wh | 25.6V 45Ah 1152Wh |
| LED | SMD3030 96 pcs | SMD3030 160 pcs | SMD3030 160 pcs | SMD3030 240 pcs | SMD3030 240 pcs |
| Luminous flux | 7,600 lm | 11,400 lm | 15,200 lm | 19,000 lm | 22,800 lm |
| Product size (mm) | 430×202×78 | 538×220×78 | 538×220×78 | 538×265×78 | 538×265×78 |
| Panel size (mm) | 550×760×25 | 800×760×30 | 1040×760×30 | 1320×760×30 | 1540×760×30 |
| Efficacy | 190 lm/W | ||||
| Material | Die-cast aluminium + PMMA | ||||
| Controller | MPPT controller | ||||
| Light angle | Type 2 / 3 / 4 / 5, transmittance >95% | ||||
| Lighting method | 100% for 4 h, 50% for 2 h, 30% for the last 6 h | ||||
| Autonomy | 3 rainy days | ||||
Tree-lined boulevards · Shaded streets · Riverfronts · Heritage avenues · Estate main roads
5–15 m depending on wattage

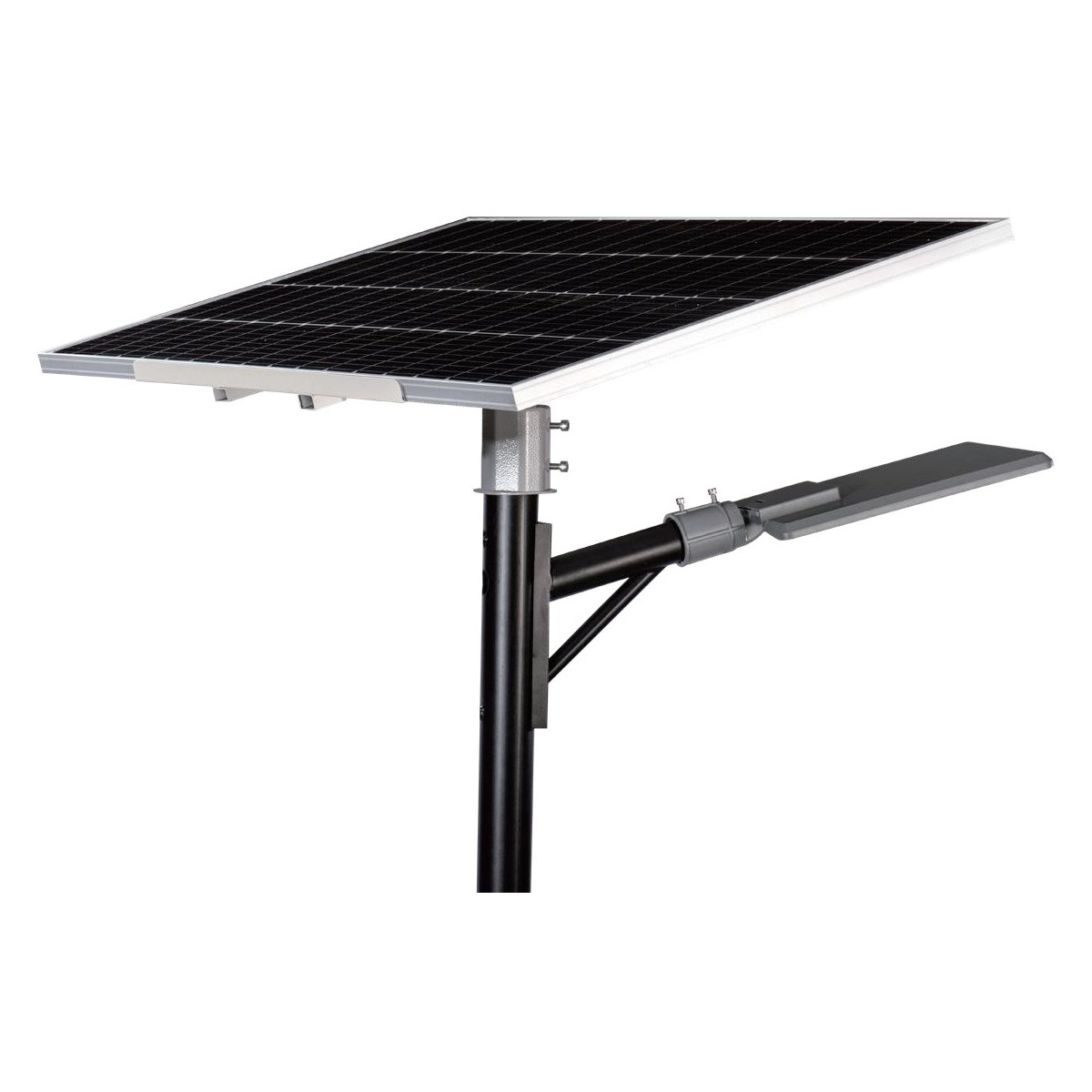

Brightech Split SD Series
High-mast split-type lighting up to 200W for intersections, interchanges, taxi ranks, stadium surrounds and open yards where a single tall mast must light a wide area.
Product features
- Separate high-capacity panel array with adjustable tilt for optimal winter yield.
- High-capacity LiFePO4 bank sized for continuous winter operation.
- MPPT charge control with configurable segmented dimming.
- Die-cast aluminium luminaire with wide-area optics.
- Designed for mast-mounted installation with ground-level battery servicing options.
Product parameters
| Model | SD-60 | SD-80 | SD-100 | SD-120 | SD-150 | SD-200 |
|---|---|---|---|---|---|---|
| Power | 60W | 80W | 100W | 120W | 150W | 200W |
| Controller | MPPT controller | |||||
| Battery chemistry | Grade-A LiFePO4 | |||||
| Autonomy | 3–5 rainy days | |||||
| Material | Die-cast aluminium | |||||
| Lighting method | Intelligent control + segmented time control | |||||
| Protection grade | IP66 | |||||
Intersections · Interchanges · Taxi ranks · Stadium surrounds · Open yards · Mine plant areas
8–18 m depending on wattage

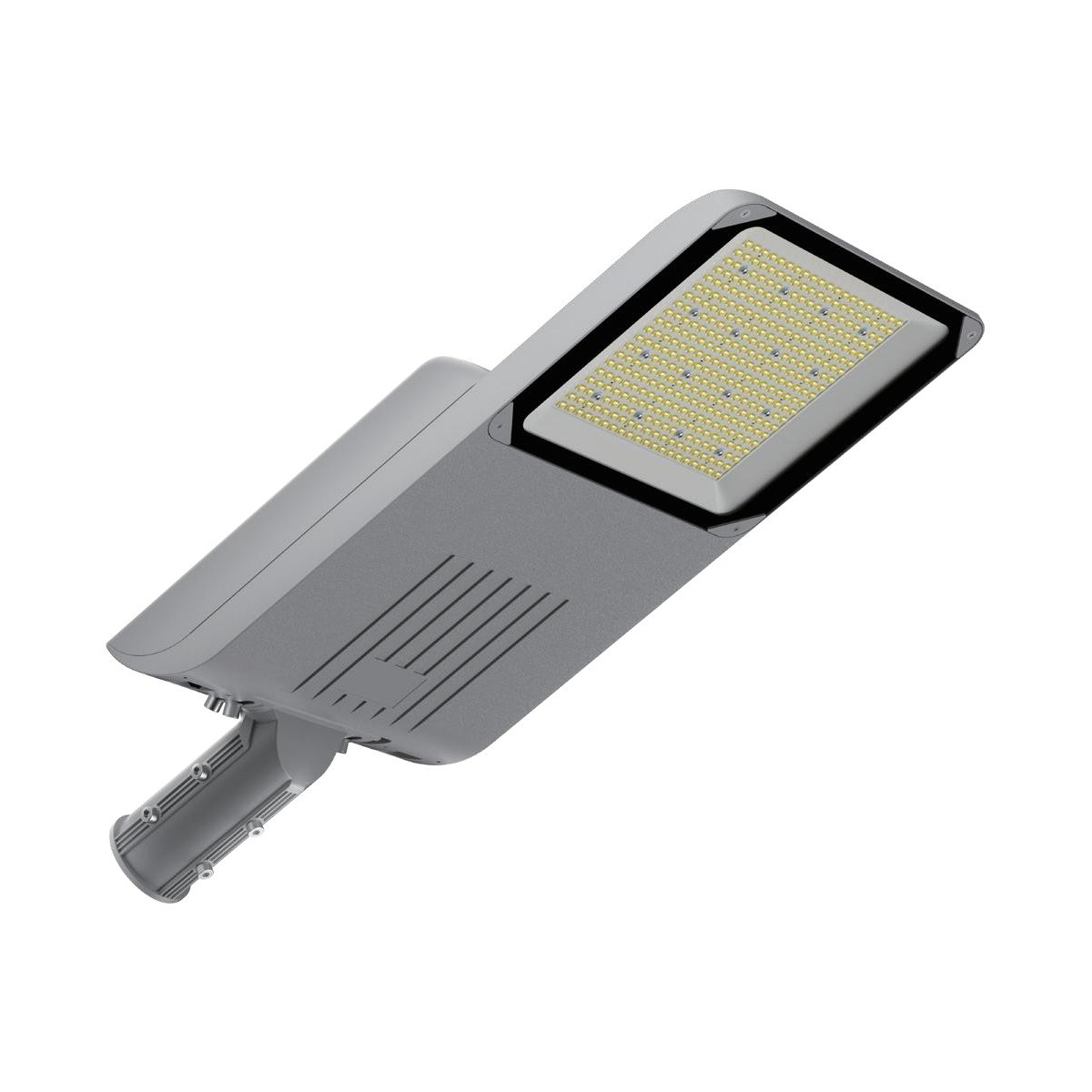

Brightech Court CL Series
Wide-beam solar flood lighting for sports courts, parking areas, community halls and open public spaces where coverage matters more than road uniformity.
Product features
- Wide-beam flood optic for even coverage across courts and open areas.
- Die-cast aluminium housing with a toughened front lens.
- High-capacity LiFePO4 storage with MPPT charge control.
- Programmable segmented dimming so evening use is prioritised.
- Pole, wall or bracket mounting.
Product parameters
| Model | CL-100 | CL-120 | CL-150 |
|---|---|---|---|
| Power | 100W | 120W | 150W |
| Battery chemistry | Grade-A LiFePO4 | ||
| Controller | MPPT controller | ||
| Optic | Wide-beam flood | ||
| Material | Die-cast aluminium + toughened lens | ||
| Autonomy | 3–5 rainy days | ||
| Protection grade | IP66 | ||
Sports courts · Parking areas · Community halls · Open public spaces · Loading yards
6–12 m depending on application

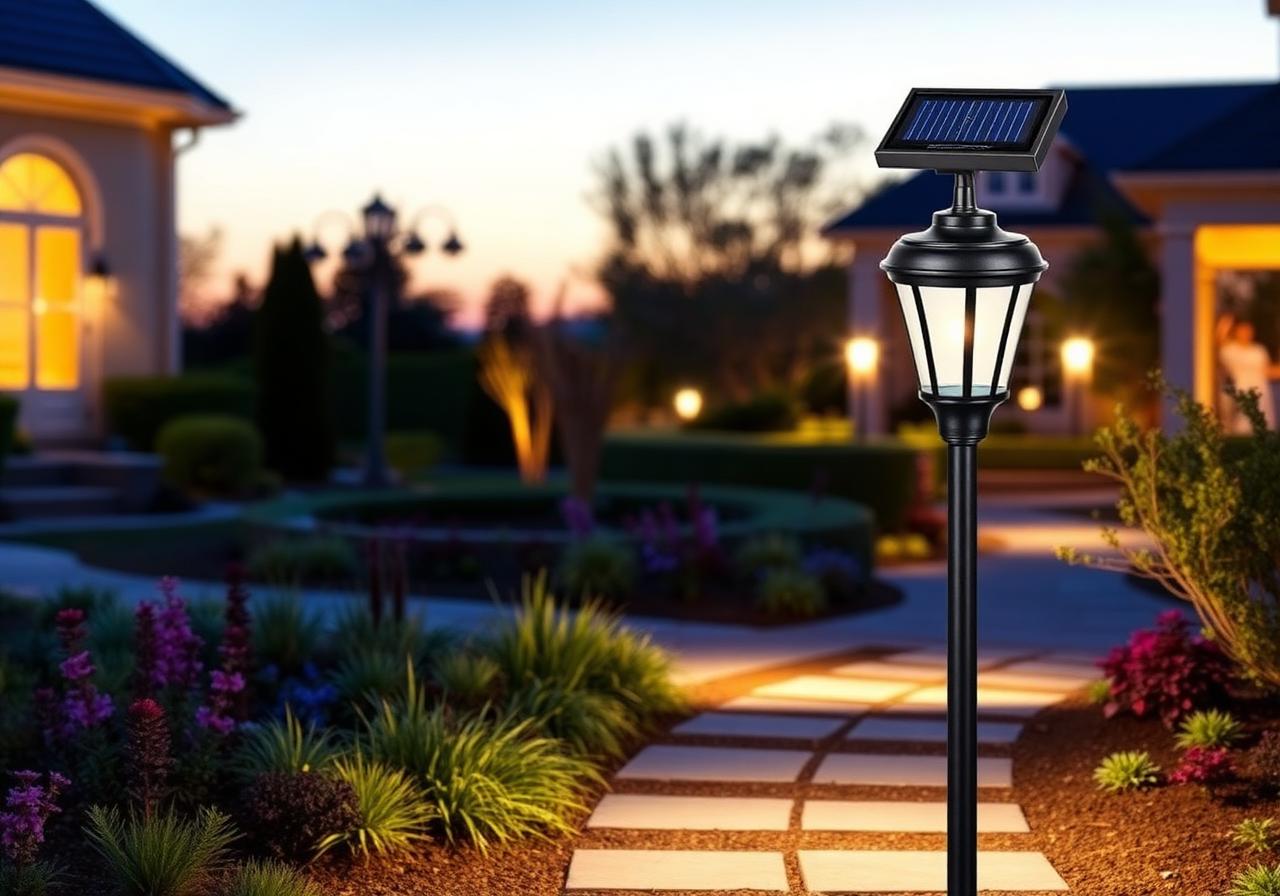

Brightech Garden TY Series
Decorative solar garden and courtyard luminaires for estates, guesthouses, office parks and public gardens — amenity lighting rather than road lighting.
Product features
- Decorative optic with soft, low-glare distribution.
- Integrated panel and LiFePO4 battery in a sealed body.
- Dusk-to-dawn operation with segmented dimming.
- Corrosion-resistant finish for coastal and high-humidity sites.
- Pole-top mounting on standard garden columns.
Product parameters
| Model | TY-15 | TY-18 | TY-20 | TY-30 |
|---|---|---|---|---|
| Power | 15W | 18W | 20W | 30W |
| Battery chemistry | Grade-A LiFePO4 | |||
| Operation | Dusk to dawn with segmented dimming | |||
| Material | Die-cast aluminium + PMMA diffuser | |||
| Autonomy | 2–3 rainy days | |||
| Protection grade | IP65 | |||
Estate gardens · Courtyards · Office parks · Guesthouses · Public gardens
2.5–4 m

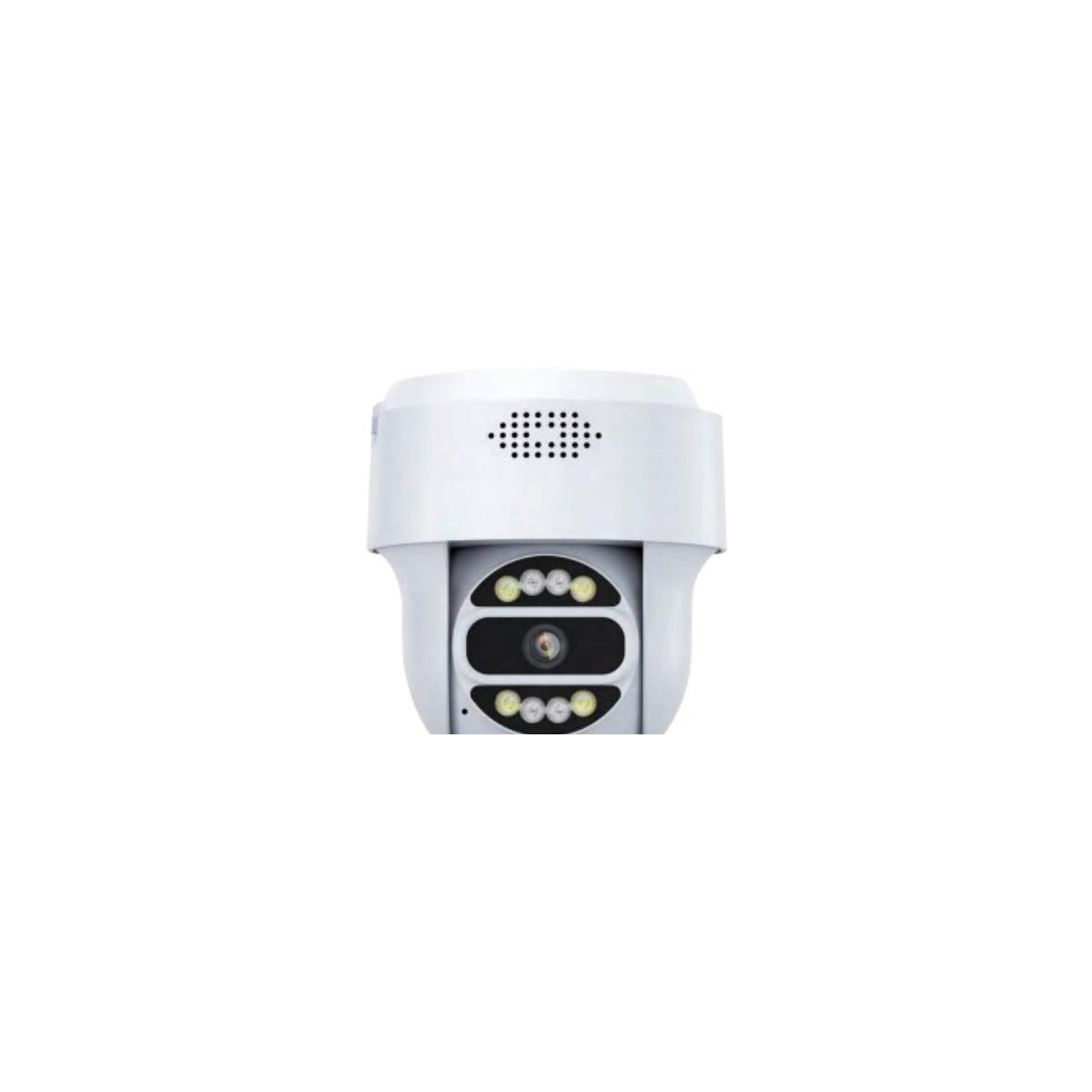

Brightech Aegis 4G PTZ Solar Camera
A self-powered 4G pan-tilt-zoom dome camera that mounts on the same pole as the luminaire. It turns an installed lighting network into a safety network without trenching for power or fibre.
Product features
- 5 megapixel imaging with full-colour night vision and triple-mode illumination.
- 266° horizontal pan and 105° vertical tilt with 10 programmable preset positions.
- AI-powered human detection and intrusion alerts with audible and visual warnings.
- Two-way audio for live voice intervention from the operations room.
- Cloud recording plus local TF card backup up to 128 GB.
- IP66 weatherproof with 4,000V lightning and surge protection.
- Plug-and-play 4G with built-in SIM, real-time signal strength and data usage reporting.
Product parameters
| Model | Aegis 4G PTZ |
|---|---|
| Sensor | 5 MP, 1/3" CMOS |
| Lens | 4 mm fixed focus |
| Resolution | Main 2304 × 1296 · sub 640 × 360 |
| Frame rate | 15 fps |
| Compression | H.264 / H.265, dual stream |
| Audio | AAC, G711 · two-way audio |
| Rotation | Pan max 266° · tilt max 105° · 0.1°–20°/s |
| Illumination range | Infrared 10–30 m · white light 10–20 m |
| Minimum illumination | Colour 0.1 lux · B/W 0.01 lux |
| IR LEDs | 8 array LEDs (4 white + 4 infrared) |
| Storage | Cloud storage + TF card up to 128 GB |
| Connectivity | 4G LTE FDD B1/B3/B5/B8 · TDD B34/B38/B39/B40/B41 |
| Solar panel | 18V / 40W monocrystalline |
| Power | DC 12V, ≤10W |
| Protection | IP66 · 4,000V lightning and surge protection |
Transit hubs · Crime hotspots · Precinct entrances · Parks · Mine perimeters · Schools
Pole-mounted alongside the luminaire, 4–10 m

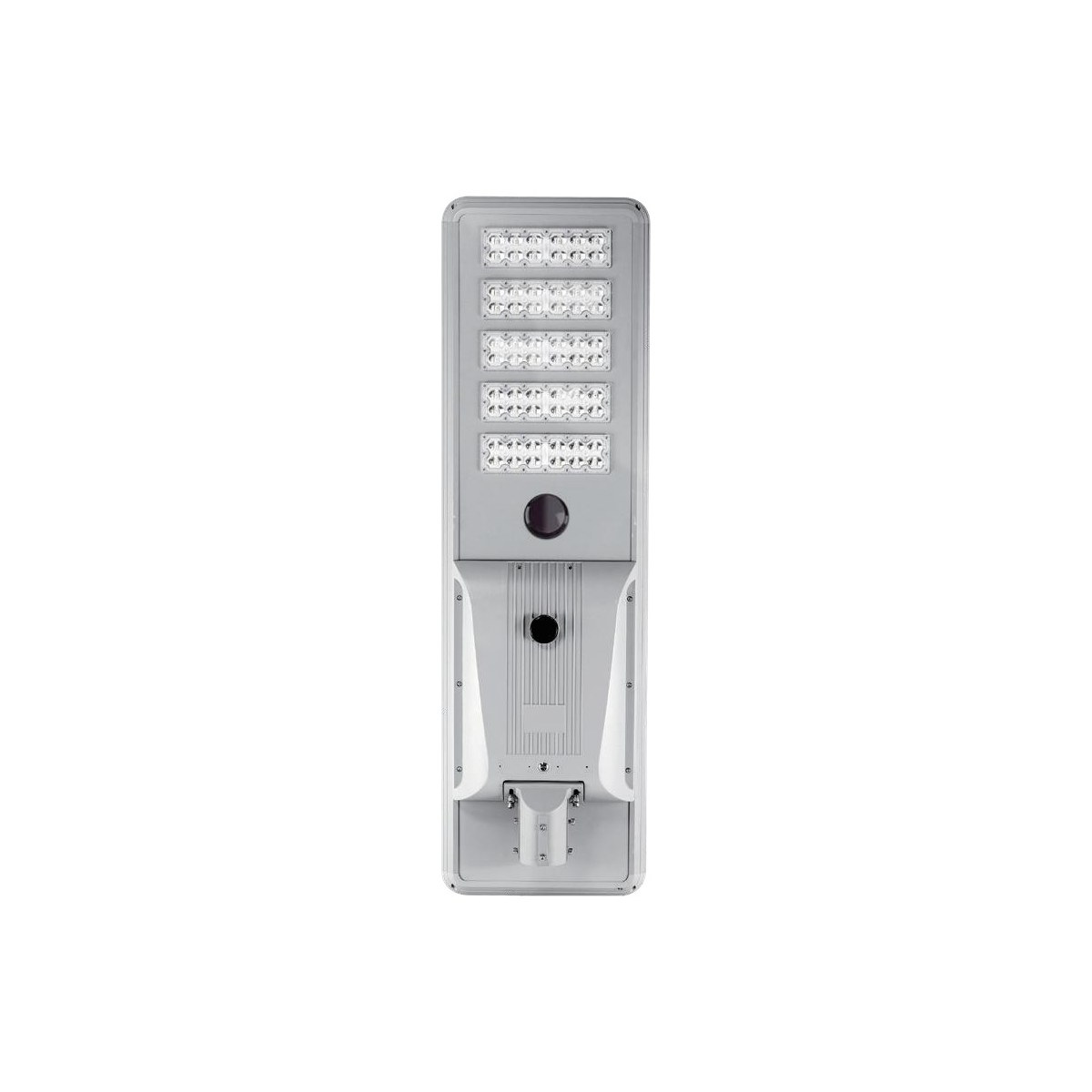

Brightech IoT Lighting Controller
The module that takes a pole from a standalone light to a managed asset. It reports charge state, burn hours, dimming profile and faults, and accepts remote schedule changes.
Product features
- Fits the sealed IoT compartment on Brightech all-in-one and split-type luminaires.
- Reports battery state of charge, panel yield, burn hours and fault codes.
- Remote dimming schedules and group commands, per pole or per street.
- Fault and tamper alerts raised to the operations view rather than reported by residents.
- SIM, APN and data managed centrally through the Brightlink 1Konnekt platform.
- Feeds the BrightCore operations dashboard used by the city, estate or precinct operator.
Product parameters
| Model | IoT Controller |
|---|---|
| Telemetry | Battery SoC, panel yield, burn hours, fault codes, tamper |
| Control | Remote dimming schedules, per pole or per group |
| Connectivity | 4G LTE with managed SIM and APN |
| Management platform | Brightlink 1Konnekt (device and SIM) + BrightCore (operations) |
| Mounting | Integrated IoT compartment on Brightech luminaires |
| Protection | Sealed within the luminaire body, IP65 / IP66 |
Municipal networks · Estates and HOAs · Precincts · Mines · Agricultural sites
Integrated — no separate mounting required
Buy it, and have it supported here
Brightech supplies, installs, commissions and supports this entire range in South Africa and across the region. Warranty claims, spares and battery swaps are handled locally.
- 1
Specify
Build a project list from the product pages, or model a whole street — including monthly cost per household — in the street calculator.
- 2
Request a quotation
Pricing is quoted per project, never published: wattage mix, pole reuse, mounting heights and site access all change it materially.
- 3
Site survey
For anything larger than a single street, Brightech surveys road class, pole condition, spans, mounting heights and shading before quoting.
- 4
Install and commission
Brightech crews install and commission, and train the client's own maintenance team on battery swaps and fault handling.
- 5
Operate
Optional IoT control brings every pole into one dashboard, with SIM and data managed through Brightlink 1Konnekt.
